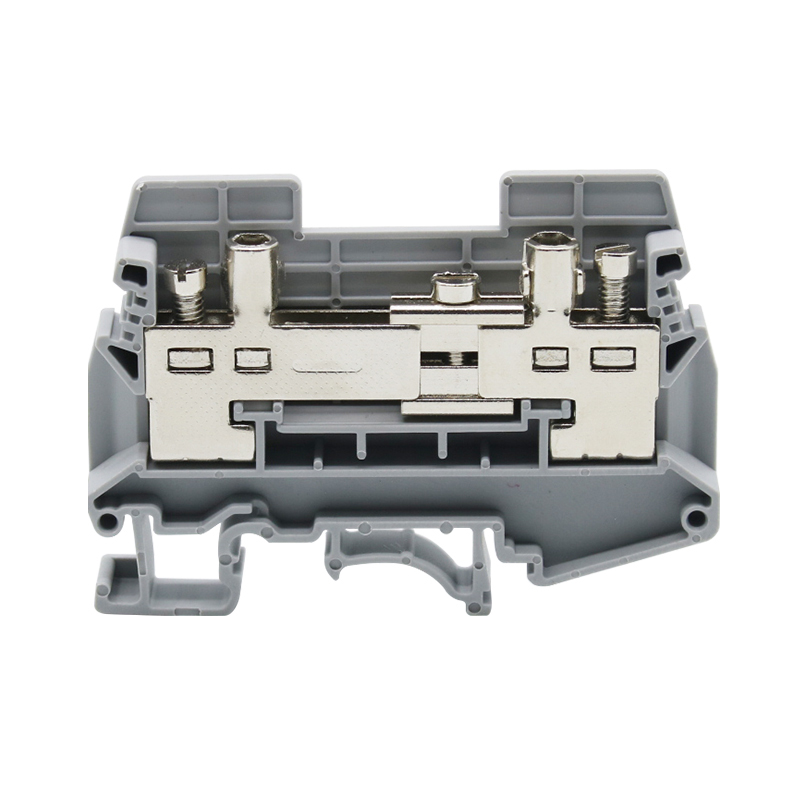

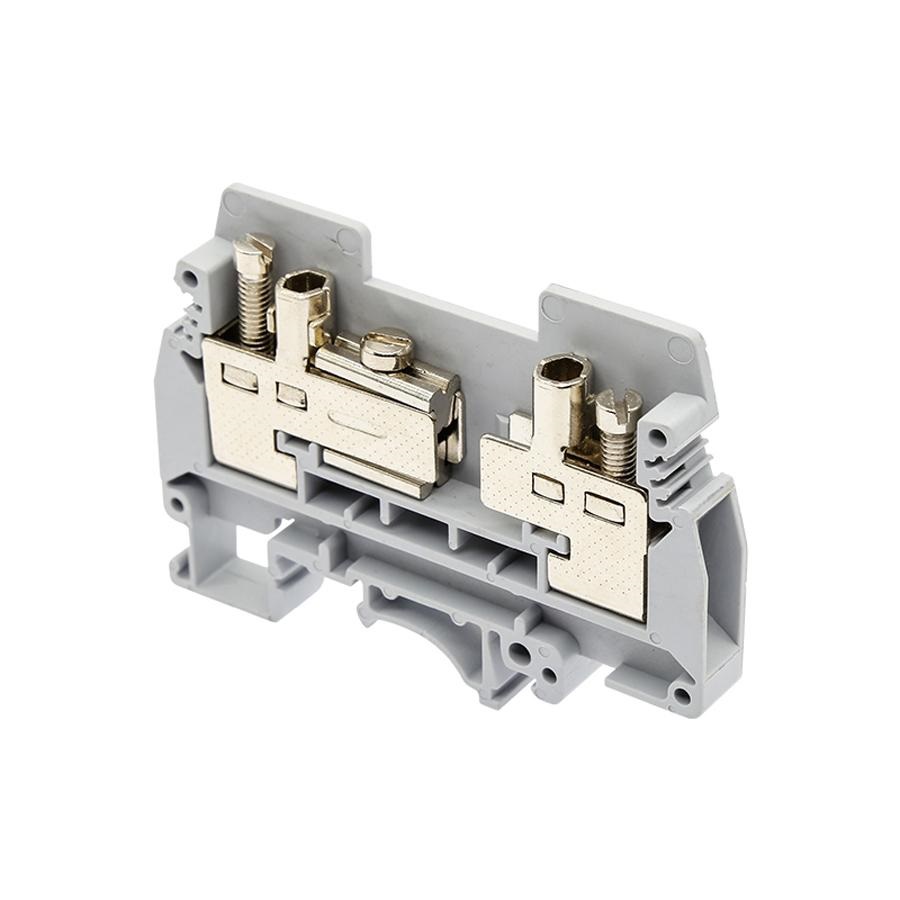

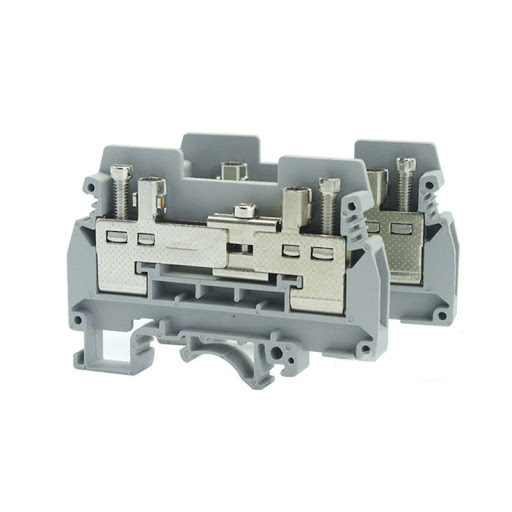

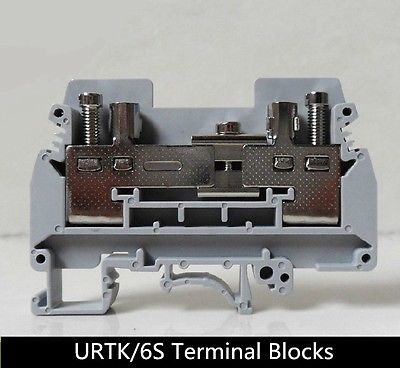

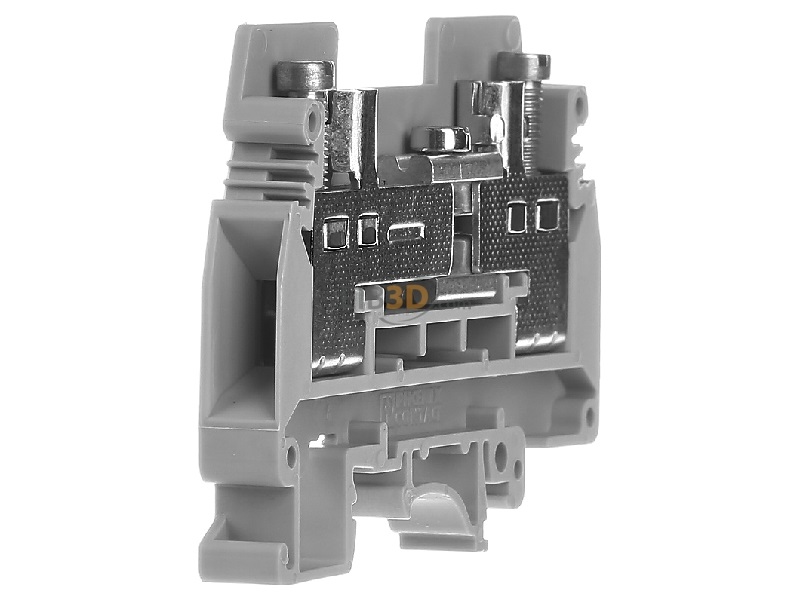

Clema Borne Urtk/s 6mm Awg 20-10 800v 57a Riel Din 35mm

Descripción

//////////////// CLEMA BORNE URTK/S 6MM AWG 20-10 400V 41A RIEL DIN 35MM ////////////////

ESPECIFICACIONES:
VOLTAJE NOMINAL: 400 V
CORRIENTE NOMINAL: 41 A
Test disconnect terminal block
with two test sockets for 4 mm test plugs
or for receiving bridge bars or screw bridges
connection method: Screw connection
cross section: 0.5 mm² – 10 mm²
AWG: 20 – 10,
idth: 8.2 mm
mounting type: NS 35/7,5, NS 35/15, NS 32
color: gray

Otras características

-> DIMENSIONES
Length 72 mm
Width 8.2 mm
End cover width 2.2 mm
Height NS 35/7,5 51.5 mm
Height NS 35/15 59 mm
Height NS 32 56.5 mm
